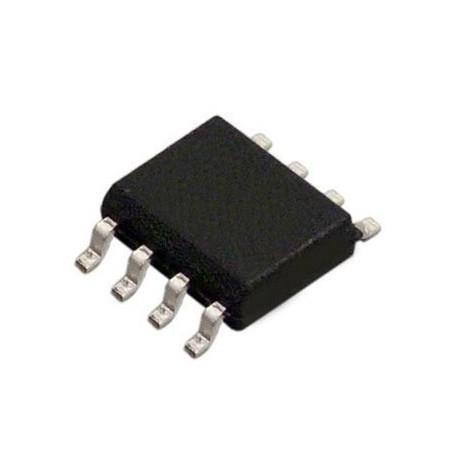

مجموعه 11 عددی تراشه آمپلی فایر HXJ8002 پکیج SOP-8

IntroductionThe 8002 is an audio power amplifier primarily designed for demanding applications in low-power portablesystems. It is capable of delivering 3 watts of continuous average power to an 3Ω BTL load with less than 10%distortion (THD) from a 5VDC power supply. the 8002 does not require output coupling capacitors or bootstrapcapacitors, and therefore is ideally suited for mobile phone and other low voltage applications where minimal powerconsumption is a primary requirement.the 8002 features a low-power consumption shutdown mode.the 8002 containsadvanced pop & click circuitry which eliminates noise which would otherwise occur during turn-on and turn-offtransitions. The 8002 is unity-gain stable and can be configured by external gain-setting resistors
Specification
Power Output at 5.0V, 10% THD+N, 3Ω 3W (typ)Power Output at 5.0V,10% THD+N,4Ω 2.65W (typ)Power Output at 5.0V,10% THD+N,8Ω 1.8W (typ)Shutdown Current 0.6µA (typ)Available in space-saving packages: SOPImproved pop &a...
